-Up to 200m/min, High productivity.
-User friendly with touch screen.
-Lower jam rate and jam self-clear.
-Self sharpen blade, simple to maintain.
-Easy to load.
Metric System

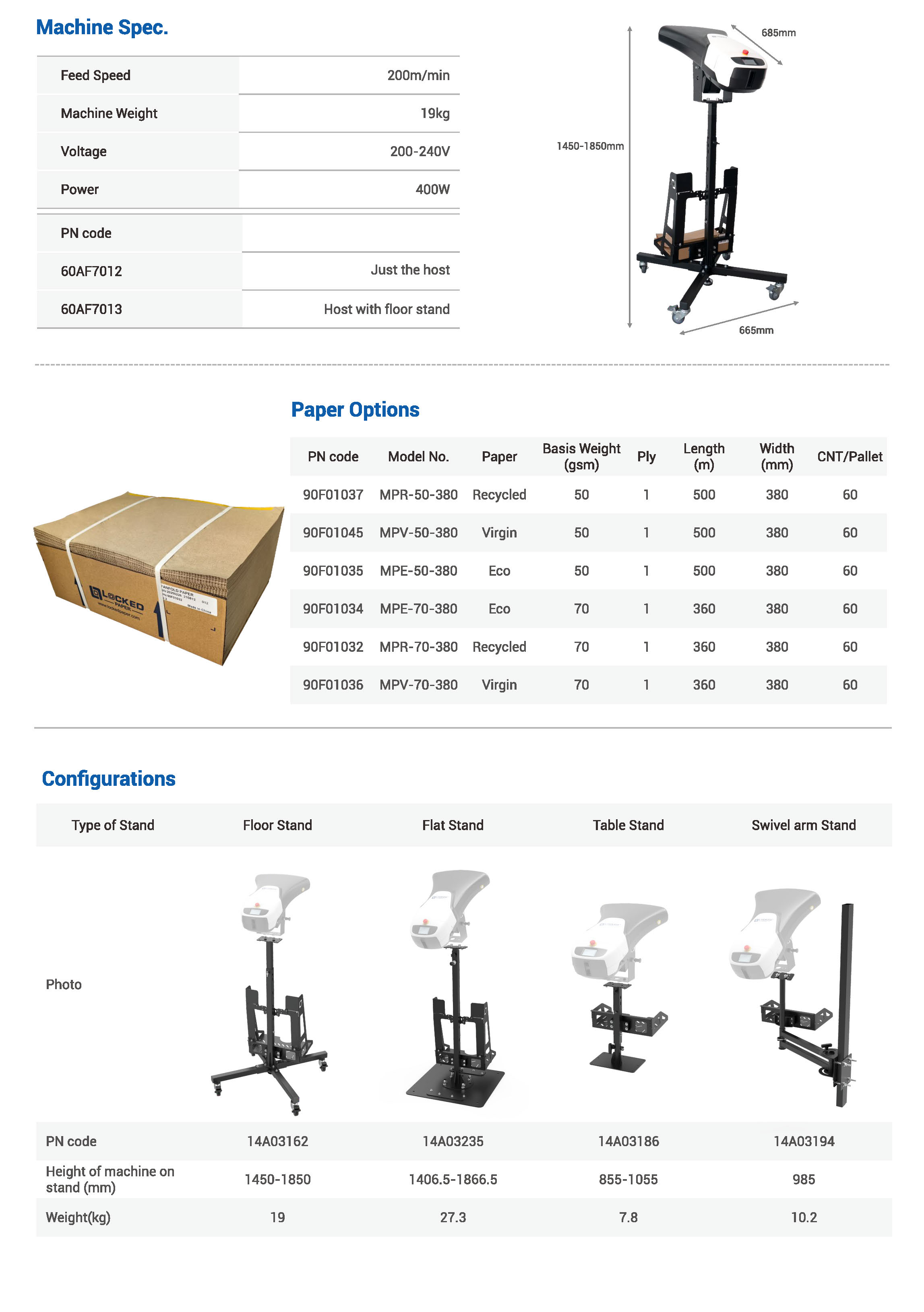

| Machine Spec. | Paper Options | ||||||
Feeding Speed | 200m/min | Model No. | Mat. | Basis Weight (gsm) | Length(m) | Width(mm) | CNT/Pallet |
Cutting Speed | 50 times/min | MPR-50-380 | Recycled | 50 | 500 | 380 | 60 |
Voltage | 100-240V | MPV-50-380 | Virgin | 50 | 500 | 380 | 60 |
Machine Weight | 19KG | MPE-50-380 | Eco | 50 | 500 | 380 | 60 |
Power | 400W | MPE-70-380 | Eco | 70 | 360 | 380 | 60 |
Cushioning paper length(m) | 0.25-4.5 | MPR-70-380 | Recycled | 70 | 360 | 380 | 60 |
Machine size (mm) | 665(L)*685(W)*1450-1850(H) | MPV-70-380 | Virgin | 70 | 360 | 380 | 60 |
| MPE-90-380 | Eco | 90 | 280 | 380 | 60 | ||
Imperial System
| Machine Spec. | Paper Options | ||||||
Feeding Speed | 656feet/min | Model No. | Mat. | Basis Weight | Length(feet) | Width(inch) | CNT/Pallet |
Cutting Speed | 50 times/min | MPR-50-380 | Recycled | 30# | 1640 | 15 | 60 |
Voltage | 100-240V | MPV-50-380 | Virgin | 30# | 1640 | 15 | 60 |
| Machine Weight | 42LBS | MPE-50-380 | Eco | 30# | 1640 | 15 | 60 |
Power | 400W | MPE-70-380 | Eco | 43# | 1181 | 15 | 60 |
Cushioning paper length(inch) | 10~177 | MPR-70-380 | Recycled | 43# | 1181 | 15 | 60 |
Machine size (inch) | 26(L)*27(W)*57.-73(H) | MPV-70-380 | Virgin | 43# | 1181 | 15 | 60 |
| MPE-90-380 | Eco | 55# | 918 | 15 | 60 | ||
LockedPaper-F1 is a paper cushioning system for void-fill and light load blocking.
LP-F1 kraft paper packaging machine uses much thinner fan-fold paper to fill the voids in the box effectively for optimal performance, balancing environmental protection and aesthetic need, providing users with a better unboxing experience.
Application Scenarios.
Electronics: These packing paper machines provide safe packaging for lightweight electronic devices, preventing them from being affected by bumps and vibrations during transportation.
Fine Ceramics: Providing protection for porcelain and ceramic products to ensure that they are not scratched or broken during transportation.
Precision Instruments: Kraft paper machines provide cushioning for precision instruments and equipment to reduce the impact of vibration on them during transportation.
Light accessories: This kraft paper void fill machine is suitable for all kinds of light accessories, such as hardware, plastic products, etc., to provide good packaging protection.
Features:
Reliable Quality
■BLDC motor, 10 times longer life than normal BDC motor.
■Long life Blade design, cuts 50gsm-90gsm paper.
High Efficiency
■High-speed with an output up to 120m/min.
■Easy to load.
■Low jam rate, allowing greater run time and packaging.
User Friendly
■Simple operating interface.
■Digital controls deliver customized paper length.
■Easy installation, eliminates the need for labor-intensive set up.
■Quick disassembly design, enables easier cleaning andmaintenance of the paper crumpling machine.
■Paper feeding mode, supports low speed loading.
| P/N | Basis Weight (gsm) | Length(m) | Width(mm) | |
| P70 | 70 | 360 | 380 | |
| P50 | 50 | 500 | 380 | |
| Stack Weight 9.6kg | ||||
